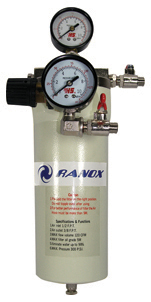

Air Filter & Manual Drain
Specifications & Functions
- Air inlet 1/2" FPT
- Air outlet 3/8" FPT
- Max. filter capacity 120 cfm
- Max. filter oil grade 5 micron filtration
- Eliminate water up to 99%
- Max. pressure 300psi
- Install filter element in vertical position.
- For better performance air hose should be 30 ft long from compressor.
|
Air-Regulator
1/4" PT
Air Cock
1/4" PT
|
1/4" PT (F) "l" Brass Fitting
1/4" PT (F) "l" Brass Fitting
|
1/4" PT (F) x 1/4" PT (F)
Brass Elbow Fitting
|
1/4" PT (F) x 1/4" PT (F)
Nipple
|
3/8" PT (M) x 1/4" PT (M)
1/2 " PT (M) x 3?8 PT (M)
Brass Reducer
|
1/4" Brass Plug
|
1/4" FPT x 5/16" Air Hose
Brass Fitting
|
1/4" MPT x 5/16 " Air Hose
Brass Fitting
|
|
QUICK RELEASE COUPLER
|
|
FEMALE
|
20SFA
(1/4" PT)
|
20SMA
(1/4" PT)
|
20SHA
(5/16" Hose)
|
|
MALE
|
20PHA
(5/16" Hose)
|
20PMA
(1/4" PT)
|
20PHA
(1/4" PT)
|
Hose Clamp
|
Pressure Guage 1/4" MPT
|
Air Hose 5/16"
|
 |
 |
|
MODEL:AFRL980
Air Unit
Filter + Regulator + Lubricator
Regulate Pressure: 10-120 psi
Max. Pressure: <140 psi
Air Inlet: G ¼”; G 3/8”; or G1/2”
|
MODEL: AFR80
Air Unit
Filter / Regulator
Regulate Pressure: 10-120 psi.
Max. Pressure: < 140 psi.
Air inlet: G 1/4”; G 3/8” or G ½”
|
| |

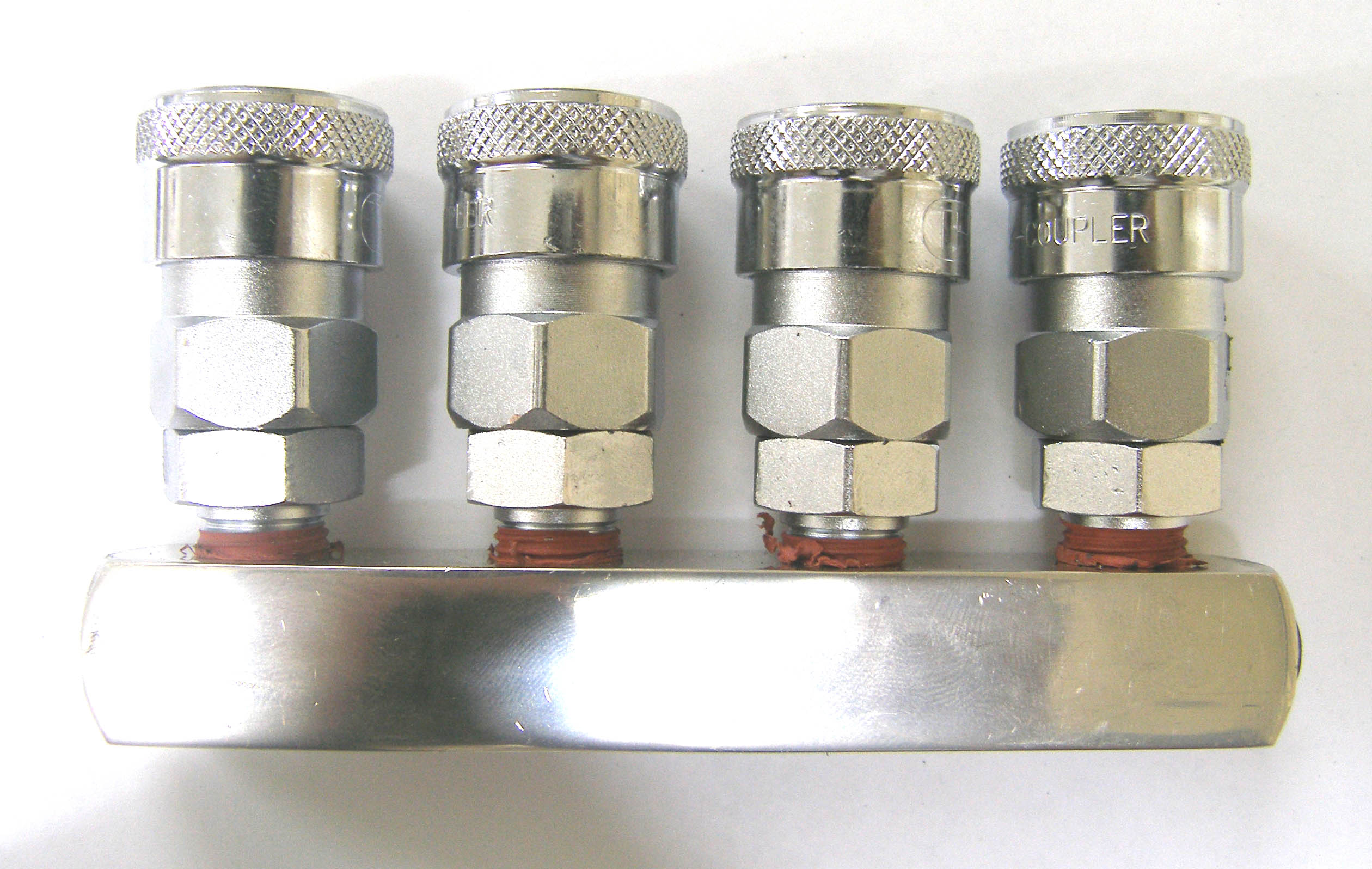

Four Gang Coupler |

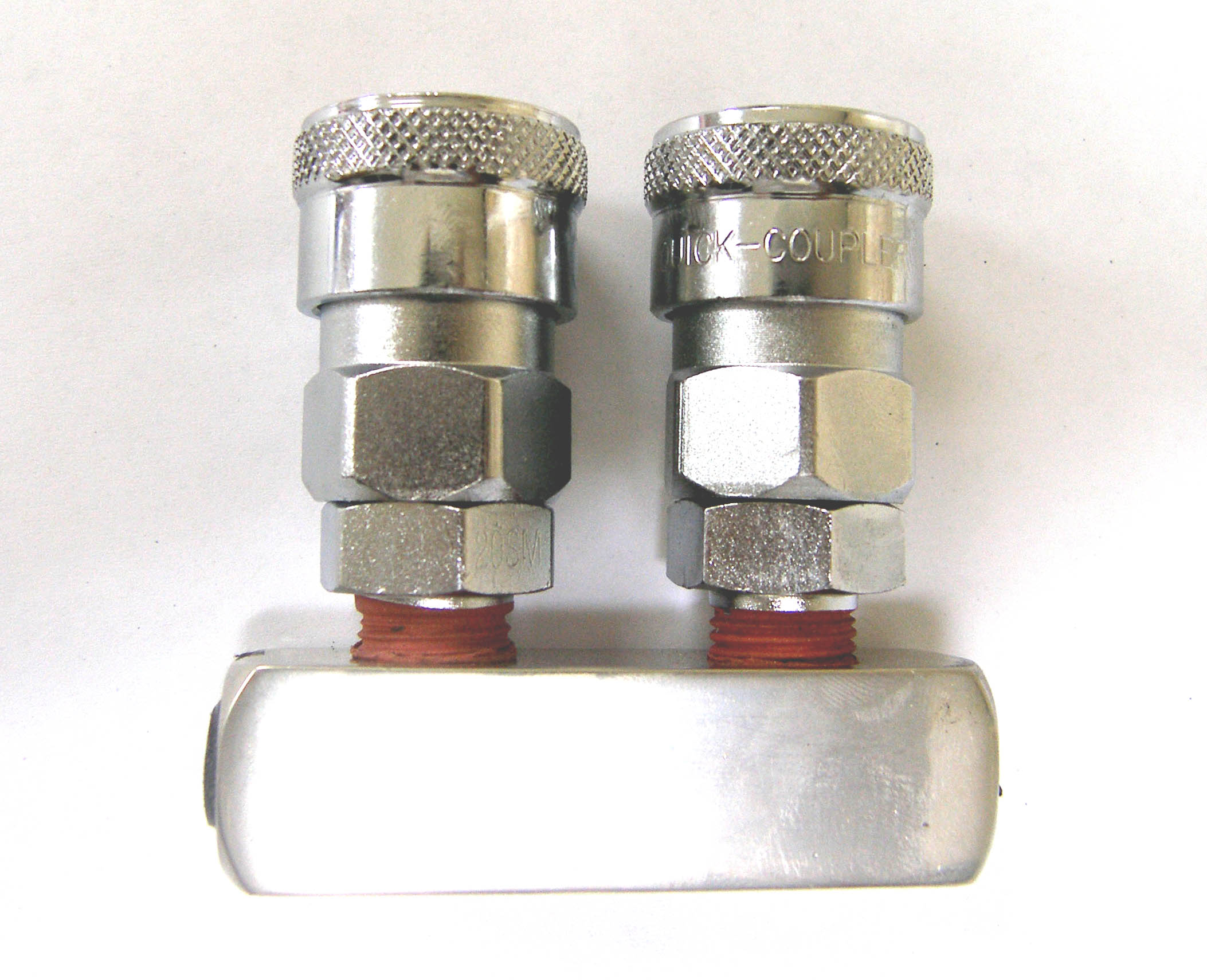

Two Gang Coupler |

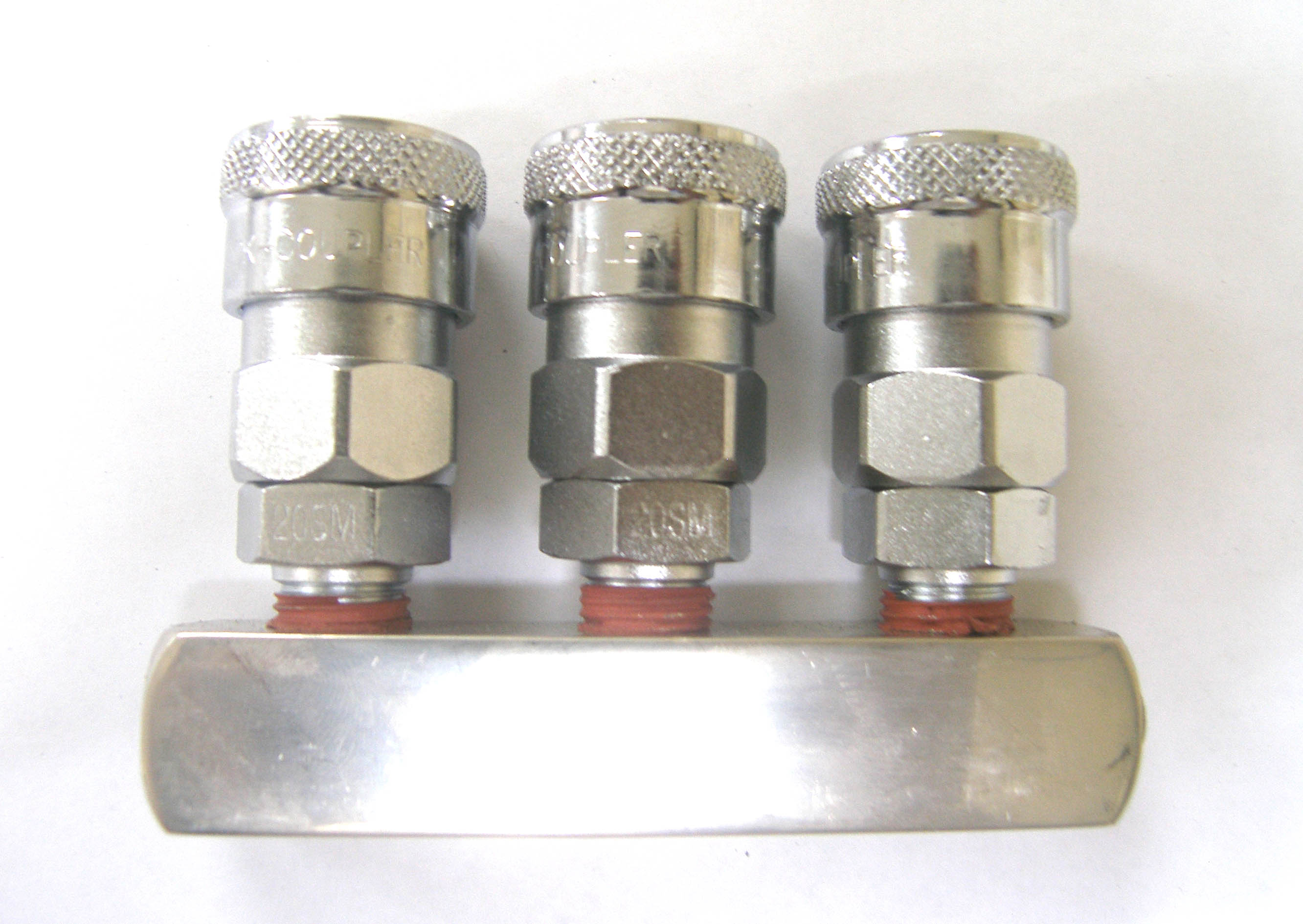

Three Gang Coupler |
|
|
