• Effectively removes paint overspray solids of all types - lacquer, air dry or baked enamel.
• Protect exhaust ducts, fans, and motors from paint build-up.
• Clean exhaust air is discharged to the atmosphere.
• Economical to use

Lightly Loaded Air Entering Side

Close-up photo shows open weave pattern that allows over-spray to penetrate deep into the pad.

Heavily Loaded Air Entering Side

Same magnification of heavily loaded pad illustrates the large holding capacity of each fiber. The open space between fibers continues to permit good airflow and allow paint to penetrate.

Heavily Loaded Cross Section

Cross section view shows how AG-28 pad is completely utilized by collecting paint throughout the full depth.

OPEN WEAVE FIBER PATTERN HOLDS MORE PAINT

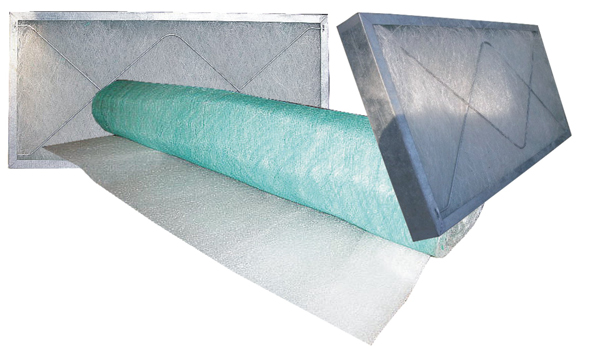

AG-28 pads are designed exclusively to collect paint overspray. They are made from continuous filament glass fibers with an open weave pattern that allows particles to penetrate deep into the pad. Paint is collected throughout the full depth, extending pad life and reducing costs. A skin backing on the air leaving side serves as a final barrier to prevent paint and other coatings from penetrating through the media.

SMOOTH AIRFLOW THROUGH BOOTH PREVENTS “FOGGING”

A specially formulated thermoset resin provides high compression strength preventing AG-28 pads from collapsing and face-loading as they become saturated. Air continues to flow smoothly through the pads preventing “fogging” or misting of paint particles in the booth. Overspray is drawn into the pads so that it does not settle on spray guns, walls, floors, or conveyors. Proper airflow assures healthier working conditions in conformanceto OSHA standards.

CLEANER EXHAUST AIR — FEWER MAINTENANCE, ENVIRONMENTAL PROBLEMS

Continuous filament glass fibers force paint laden air to change directions many times as it passes through the pad. Paint particles, unable to follow the continuously weaving air stream, collect on the fibers. Cleaner exhaust air flows on through.

FAST, EASY INSTALLATION AND REMOVAL

An entire bank of AG-28 pads can bechanged in a few minutes. They fit into standard holding frames, no new grids or other accessories needed. AG-28 pads are directly interchangeable with other types of paint arrestors. Only one AG-28 pad is required per frame, including installations where two paper pads are currently used.

SPACE-SAVING DISPENSER CARTON
The AAF exclusive packaging design has 60 two-inch pads in a carton only 10 1/2" high.

These cartons are easily carried to and from the booth. A perforated, easy-open dispenser top permits fast removal of pads. They spring back to their original 2" thickness when removed, while the remaining supply is held conveniently in place until needed.
